Pulizia con ghiaccio secco IS SMART HD

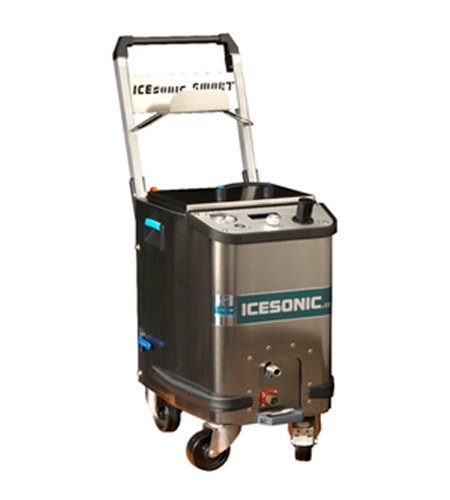

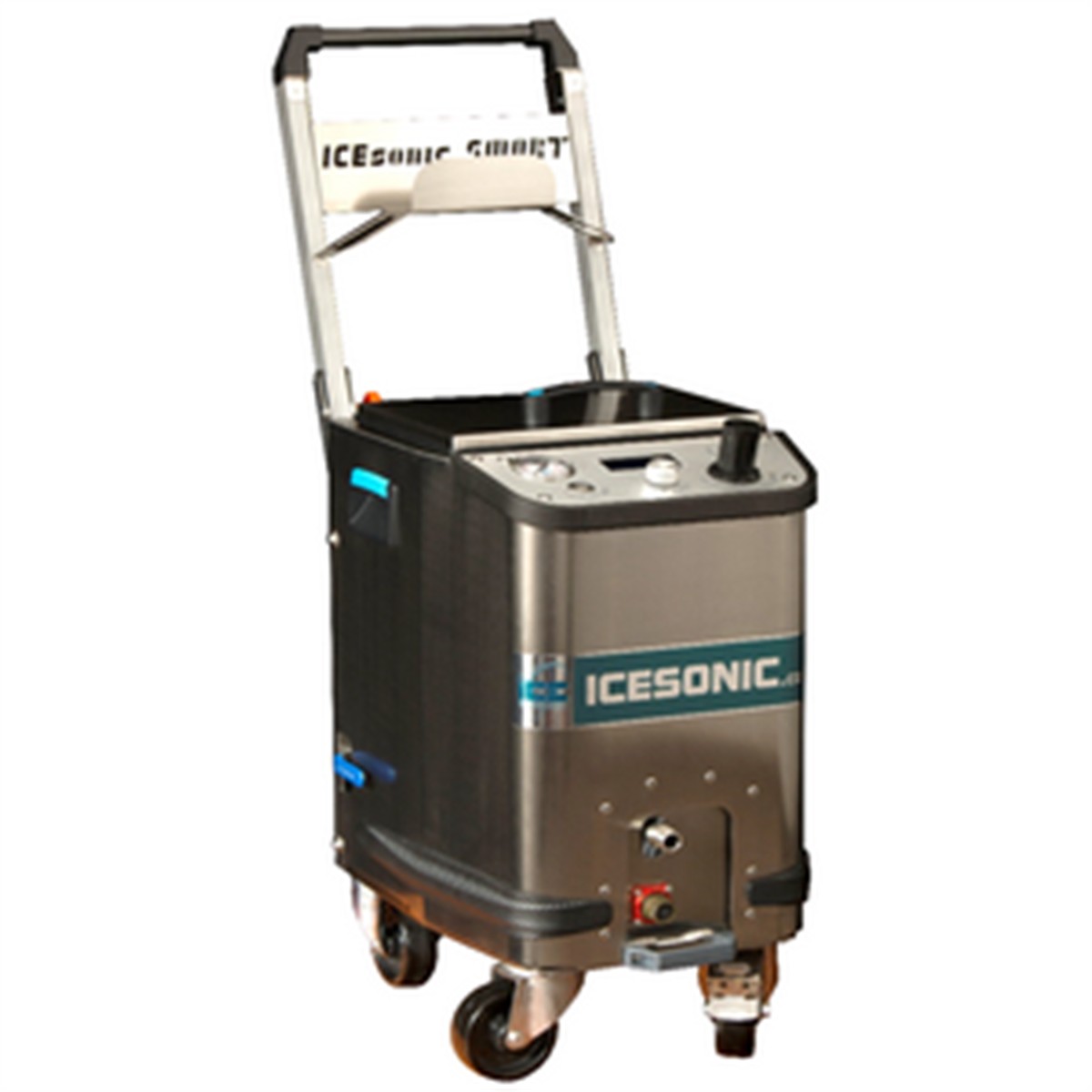

ICEsonic SMART Industrial

SMART Industrial is capable to handle the most demanding surface preparation applications that require large compressed air consumption and offers true professional power. Air Supply from 0.5m3/min. (17 cfm) up to 4.5m3/min. (160 cfm) and maximum dry ice consumption 90 kg/h ( 200 lbs/h).

TECHNOLOGY

• Powerful Single Hose Action
• Uses Dry Ice Pellet Size From 1/16“ To 1/8” (1.5mm To 3mm)
• Low Air Consumption (varies by nozzle size) from 10 cfm (at 15 Psi) 500l/Min (at 2 bar)

CONSTRUCTION

• All Stainles Steel Construction
• Heat Resistant Wheels
• Heavy Duty Blasting Hose (Fire Protection Available on Request)
• Industrial, VFD Controlled, El. Motor
• MIL Spec. Electrical Connectors
• Quick Coupling ¾“ Air Inlet
• Foldable Handle

OPERATION

• Variable Dry Ice Feed With LED Display – up to 200lbs/H (90kg/H)
• Variable Blasting Pressure Easily Adjusted on a Control Pannel
• Built-in 40 Microns Filter
• Blasting Hose Management System
• Blasting Pressure Gauge, Power And Blasting Lights
• Vibrator Ensures Operation Without Dry Ice Hopper Clogging
• Air Feed Shutoff Valve

SPECIFIATIONS

• Dry Ice Consumption 0 – 200lbs/h (0-90 kg/h)
• Minimum Air Supply: 37 cfm (0,5m3/min)
• Minimum Air Pressure: 45 psi (3 bar)
• Maximum Air Supply: 160 cfm (4,5 m3/min)
• Maximum Air Pressure: 230 psi (1600 kPa/16 bar)
• Insulated Dry Ice Hopper Holds up to 33 lbs (15 kg)

Size

• Blaster: 14x23x30” (370X580X780mm)
• Blaster With Raised Handle: 14x23x40” (370x580x1150mm)

Weights

• Machine Only: 120 lbs (68 kg)

Package includes:

• Dry Ice Blasting Unit
• 16 ft. (5 m) Blasting Hose
• Applicator
• 0.3” (8.0 mm) Medium Flow Round Nozzle

ML.SM80	SM.G.200	SM.11-3

Shipping dimensions: 400x600x950 mm, 85 kg
